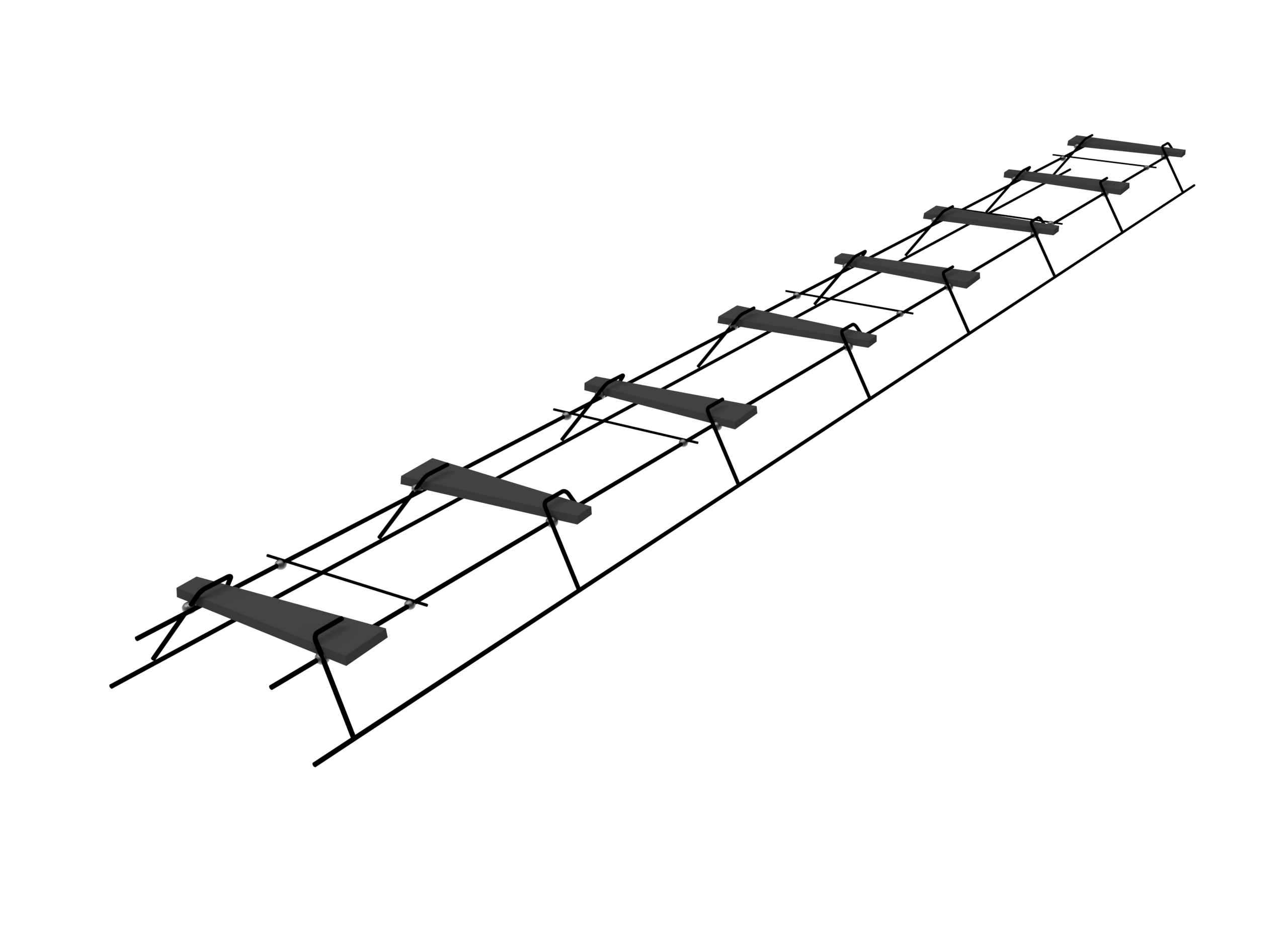

PD3 Basket® Assembly

Text/HTML

Tapered plate dowel baskets for saw-cut contraction joints.

The PD3 Basket Assembly offers an unparalleled design that places reinforcement only where it is needed: at the joints. The PD3 Basket Assembly ensures optimal performance by facilitating superior load transfer while optimizing the amount of steel in a concrete flatwork project. The industry proven tapered-plate geometry minimizes joint spalling, eliminates restraint, reduces bearing stresses, and provides generous construction tolerances to allow for misalignment. As a result, you deliver more serviceable saw-cut contraction joints and joint stability measurements of .01 inches (.25mm). Long-term costs are reduced with a continuity of surface profile that eliminates tripping hazards and improves joint filler or sealer performance.

Recommended for saw-cut contraction joints in:

  • Concrete slabs on grade
  • Concrete pavement
  • Concrete flatwork exposed to pedestrian traffic



PD3 is the better choice:

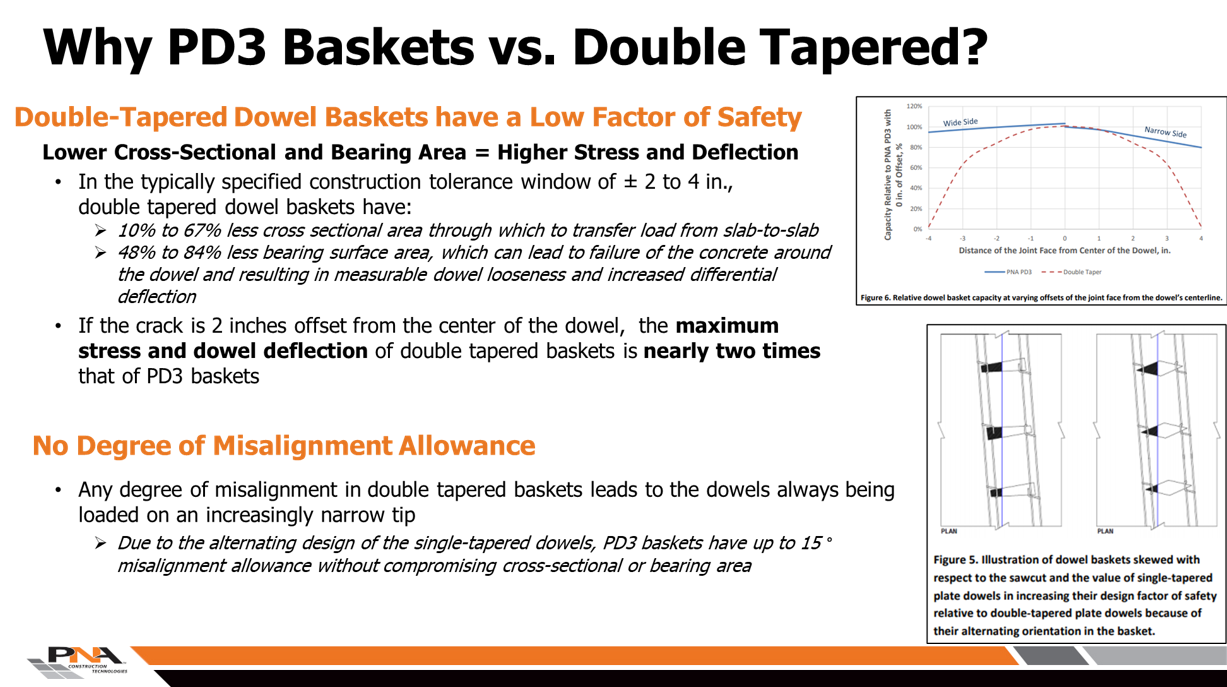

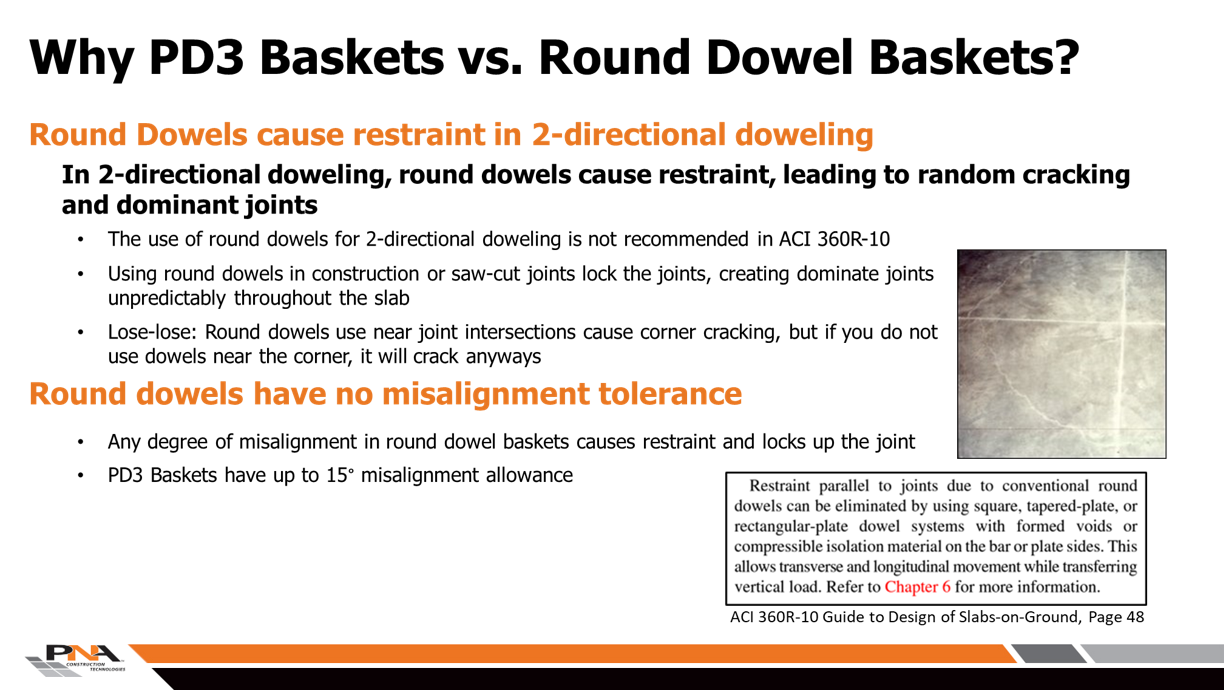

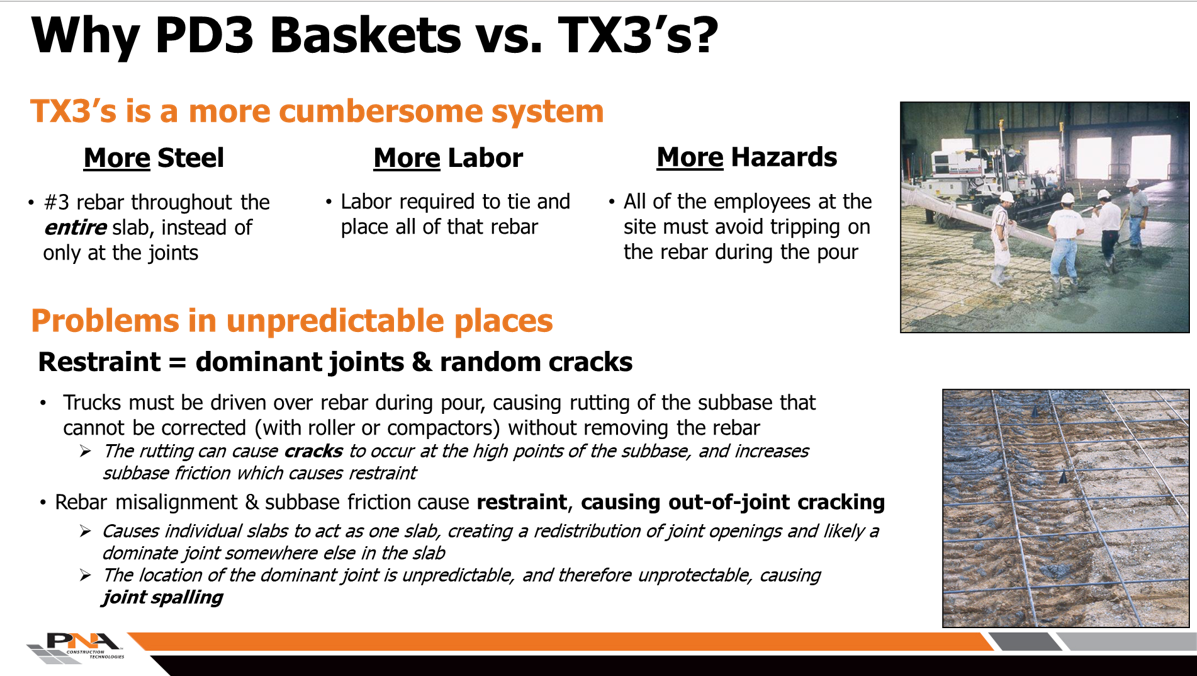

VS. ROUND DOWELS VS. DOUBLE TAPERED BASKETS VS. TEXAS 3'S



Take the guesswork out of dowel design:

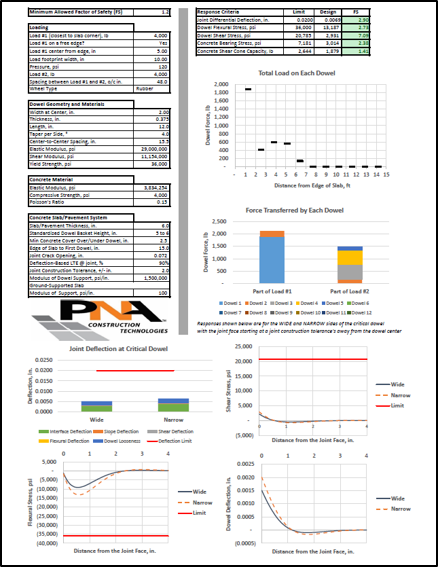

Proprietary tools allow PNA's flatwork engineers to customize every design to optimize slab thickness and dowel basket dimensions, resulting in lower installed costs. PNA's Dowel Calculator optimizes dowel size and spacing while measuring performance and factor of safety requirements.

REQUEST A CUSTOM DOWEL DESIGN



Learn More
